 J-3 Cub Construction Project Session #64

64 J-3 Cub Aileron Outlines and First Wing Strut

After I checked with Mike Midkiff yesterday to see if it is necessary to put the aileron outlines on the bottom side of the wing panels also, I went back today and did that as shown below. I hope to receive the tissue wing letters and numbers in tomorrow's mail.

Aileron outlines on the top side of the wing panels

Aileron outlines on the bottom side of the wing panels.
Notice the small pads I put in the bottom of the wing Structure to glue the wing struts to.

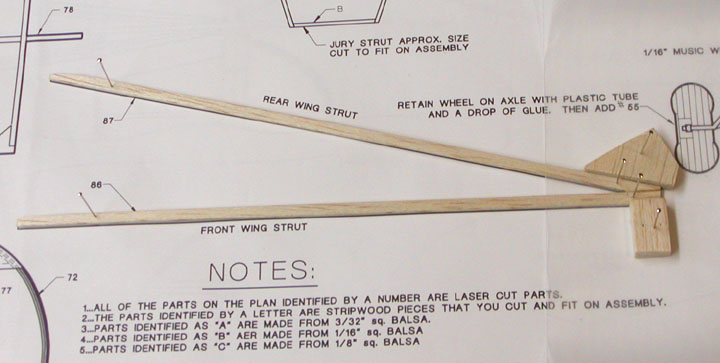

I sanded the leading and trailing edges of wing strut two elements and then pinned the first strut down on the plan as shown below..............................Tandy
